mHTG
This product has the following explosion protection:
II 2 G Ex e mb IIC T5 Gb
II 2 D Ex tb IIIC T90°C Db
-55 °C ≤ Ta ≤ +50°C (AC-Mod.)
-55 °C ≤ Ta ≤ +60°C (DC-Mod.)
Zone 1, 2, 21, 22
II 2 G Ex e mb IIC T5 Gb
II 2 D Ex tb IIIC T90°C Db
-55 °C ≤ Ta ≤ +50°C (AC-Mod.)
-55 °C ≤ Ta ≤ +60°C (DC-Mod.)
Zone 1, 2, 21, 22

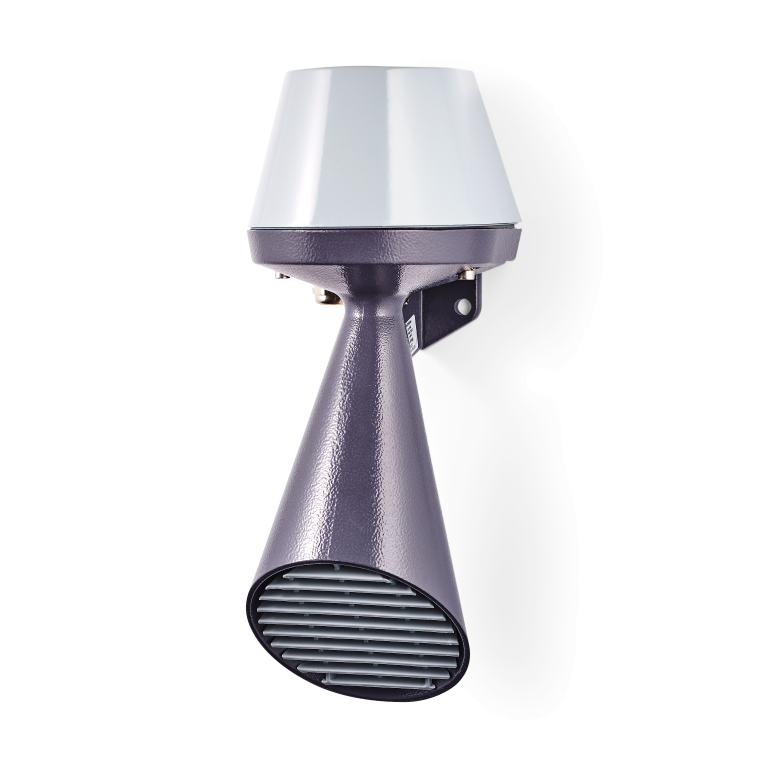

mHTG Explosion-proof signal horn
- Loud, well-designed, explosion-proof electromechanical signal horn with typical horn tone
- Certified for gas and dust hazardous areas of zone 1, 2, 21, 22
- Encapsulation
- Die-cast aluminium housing
- Weather-proof paint, resistant to seawater
- Degree of protection IP 66
- Insulation class I
- Max. 108 dB (A) in 1 m
Especially suitable for
Technical data
| Housing | seawater-resistant aluminium, with weather-proof paint |
| Type of mounting | vertical, Sound outlet opening at bottom |
| Cable entry | Cable gland M20 x 1.5 |
| Connection technology | bis 2,5 mm² |
| Tone | typical signal horn tone |
| Volume | max. 108 dB |
| Duty cycle | 75 % |
| Operating temperature | -55 °C / +60 °C-55 °C / +60 °C (DC) -55 °C / +50 °C (AC) |
| Degree of protection | IP66 |
| Insulation class | I |
| Weight | 2 kg |
