PC7BHV7

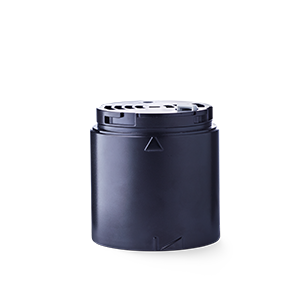

PC7BHV7 High-voltage upper base section, up to 7 modules

Discover product benefits

Downloads

Request product

3D-Modell herunterladen

PC7BHV7 High-voltage upper base section, up to 7 modules

Upper base part with integrated connection terminal with push-in clamping yoke technology
High contact reliability and conductivity, even when exposed to vibrations
Integrated switched mode power supply technology for 110-240 V AC applications
Suitable for all lower base parts, for up to 7 signal tower modules

Bayonet locking system with securing mechanism
High degree of protection IP66/IP67, UL type 4/4X/13

Technical data

Leakage current	0,003 A
Duty cycle	100 %
Operating temperature	-30 °C / +70 °C
Product standard	IEC60947-5-1 + UL60947-5-1
Degree of protection	IP66, IP67 & UL Type 4/4x/13
Impact resistance	IK08
Weight	109 g
