C30

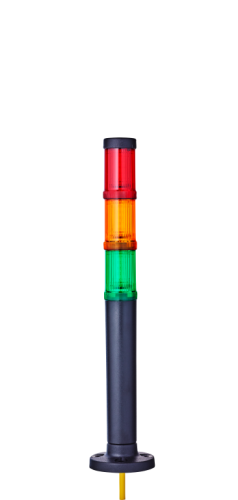

C30 compact Signal tower Ø 30mm
- Ø 30 mm ready-to-use pre-assembled signal tower series
- 1 m pre-wiring as standard
- LED steady/strobe beacon modules in 6 colours
- One-tone and two-tone piezo buzzer modules available
- Pre-assembled towers or individually configured towers available
- Housing colours black or grey
- Extensive range of mounting types
- High degree of protection IP65, UL type 4/4X/13
Especially suitable for
Technical data
| Housing | Ø 30 mm, Polycarbonate |
| Lens | Polycarbonate, ribbed inside amber, red, clear, blue, green or yellow |
| Type of mounting | any |
| Connection technology | pre-wired, special lengths available on request |
| Leakage current | 0,003 A |
| Beacon type | LED steady beacon or LED flashing beacon |
| Light source | LEDs |
| Strobe/flash frequency | Flashing beacon 2 Hz |
| Tone | Steady tone, Pulsing tone or Steady or pulsing tone (depending on module) |
| Volume | 85 dB |
| Tone frequency | 4.500 Hz |
| Duty cycle | 100 % |
| Service life | Light source: 100.000 h |
| Number of possible modules | max. 5 |
| Operating temperature | -25 °C / +50 °C |
| Degree of protection | IP65 & UL Type 4/4x/13 |
| Weight (modules) | 15-20 g |
Pre-assembled signal towers

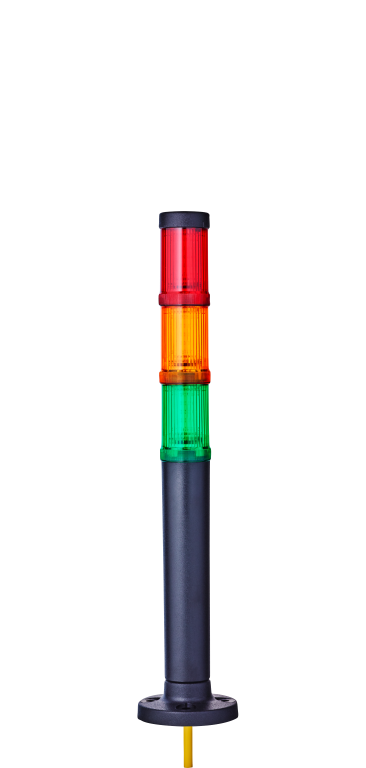

Part no.: C30-Q01
Number of colours: 3
Colours: red/amber/green
Function: LED steady beacon
Nominal voltage: 24 V AC/DC
Type of mounting: horizontal
Number of colours: 3
Colours: red/amber/green
Function: LED steady beacon
Nominal voltage: 24 V AC/DC
Type of mounting: horizontal

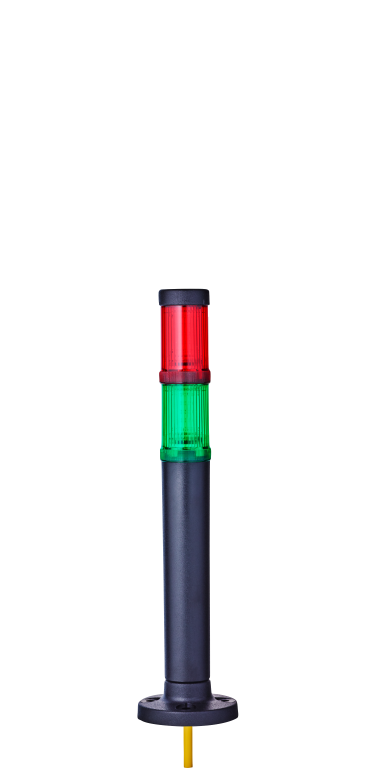

Part no.: C30-Q02
Number of colours: 2
Colours: red/green
Function: LED steady beacon
Nominal voltage: 24 V AC/DC
Type of mounting: horizontal
Number of colours: 2
Colours: red/green
Function: LED steady beacon
Nominal voltage: 24 V AC/DC
Type of mounting: horizontal

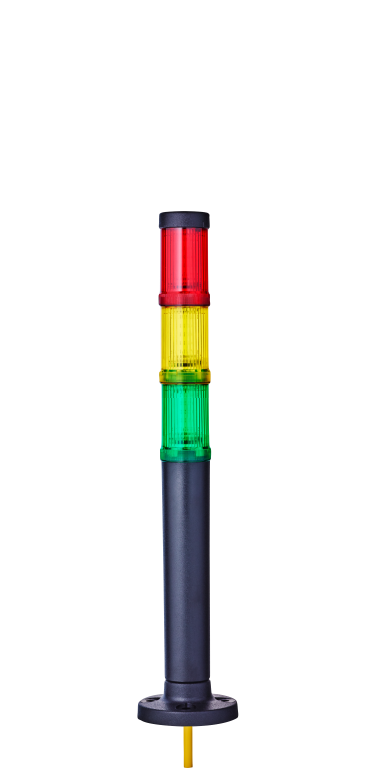

Part no.: C30-Q07
Number of colours: 3
Colours: red/yellow/green
Function: LED steady beacon
Nominal voltage: 24 V AC/DC
Type of mounting: horizontal
Number of colours: 3
Colours: red/yellow/green
Function: LED steady beacon
Nominal voltage: 24 V AC/DC
Type of mounting: horizontal

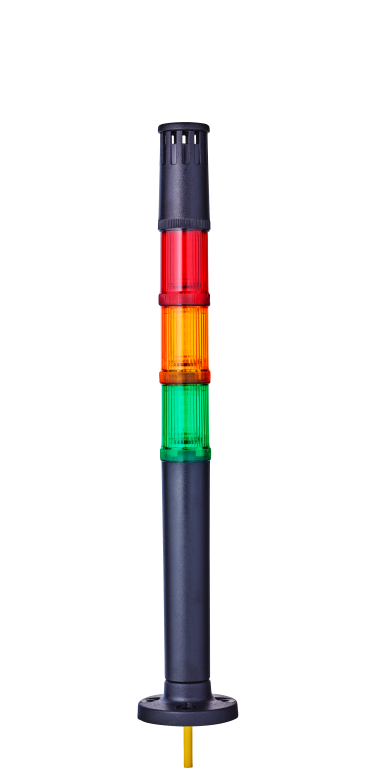

Part no.: C30-Q41
Number of colours: 3
Colours: red/amber/green
Function: LED steady beacon, buzzer steady or pulsing tone
Nominal voltage: 24 V AC/DC
Type of mounting: horizontal
Number of colours: 3
Colours: red/amber/green
Function: LED steady beacon, buzzer steady or pulsing tone
Nominal voltage: 24 V AC/DC
Type of mounting: horizontal

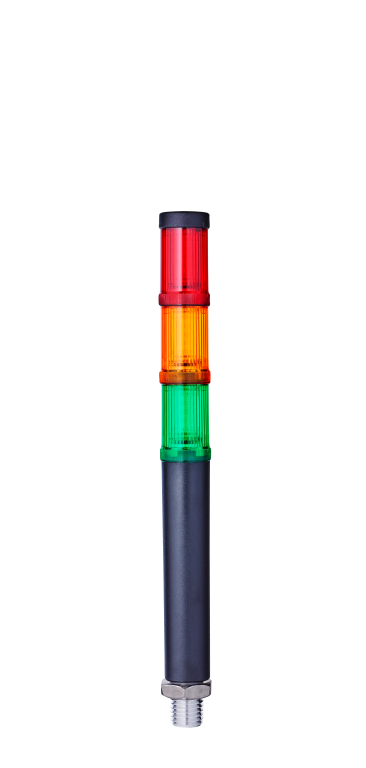

Part no.: C30-Q601
Number of colours: 3
Colours: red/amber/green
Function: LED steady beacon
Nominal voltage: 24 V AC/DC
Type of mounting: horizontal
Number of colours: 3
Colours: red/amber/green
Function: LED steady beacon
Nominal voltage: 24 V AC/DC
Type of mounting: horizontal

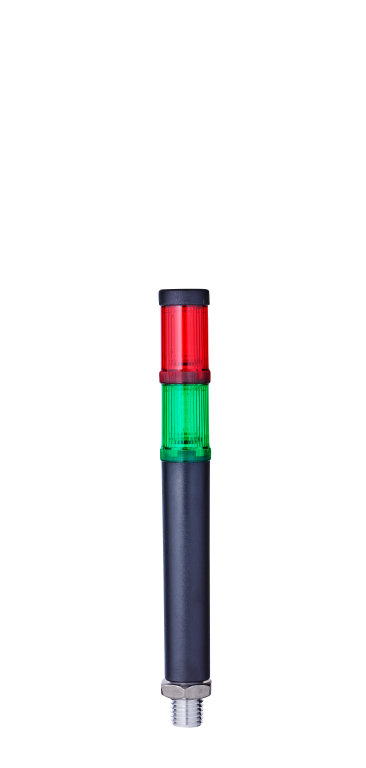

Part no.: C30-Q602
Number of colours: 2
Colours: red/green
Function: LED steady beacon
Nominal voltage: 24 V AC/DC
Type of mounting: horizontal
Number of colours: 2
Colours: red/green
Function: LED steady beacon
Nominal voltage: 24 V AC/DC
Type of mounting: horizontal

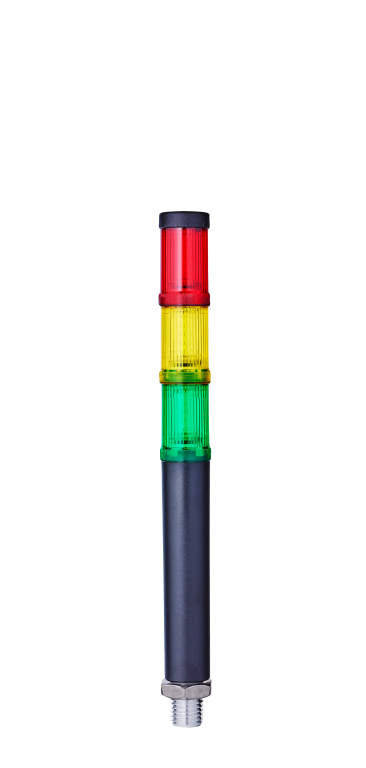

Part no.: C30-Q607
Number of colours: 3
Colours: red/yellow/green
Function: LED steady beacon
Nominal voltage: 24 V AC/DC
Type of mounting: horizontal
Number of colours: 3
Colours: red/yellow/green
Function: LED steady beacon
Nominal voltage: 24 V AC/DC
Type of mounting: horizontal

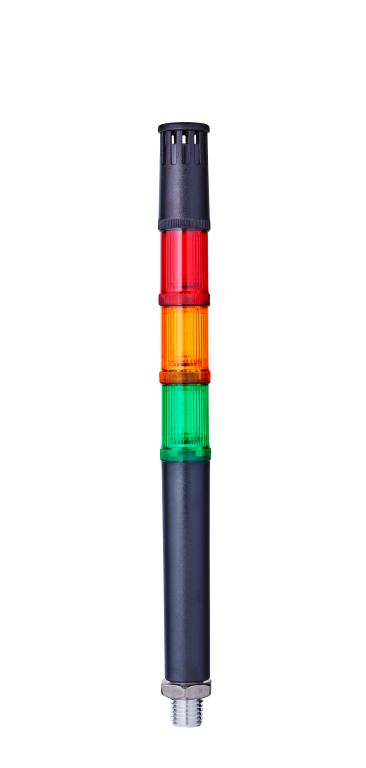

Part no.: C30-Q641
Number of colours: 3
Colours: red/amber/green
Function: LED steady beacon, buzzer steady or pulsing tone
Nominal voltage: 24 V AC/DC
Type of mounting: horizontal
Number of colours: 3
Colours: red/amber/green
Function: LED steady beacon, buzzer steady or pulsing tone
Nominal voltage: 24 V AC/DC
Type of mounting: horizontal
