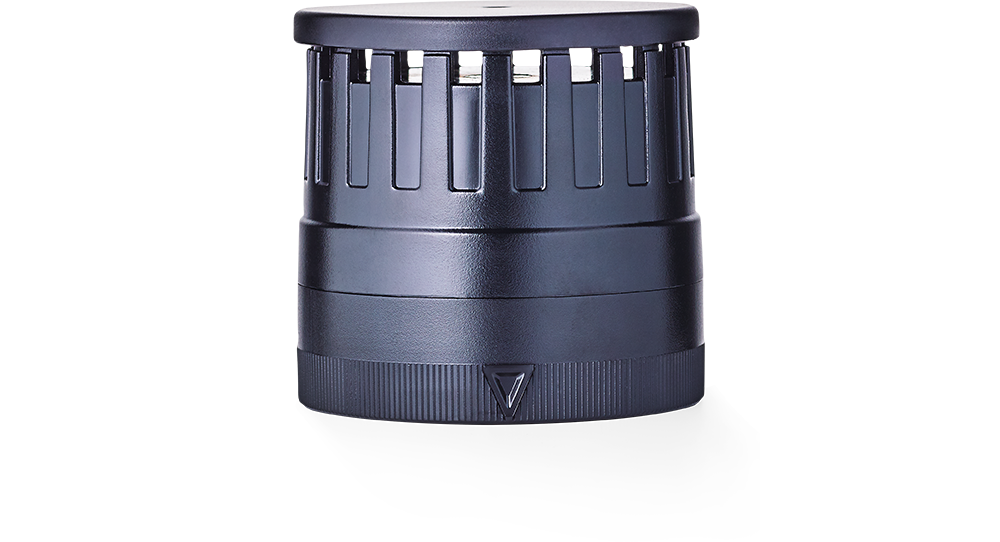

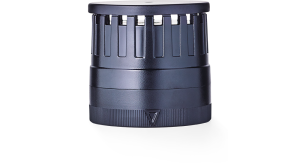

YDE Piezo buzzer module

Piezo buzzer module for ECO60 modular signal tower
For one-tone operation, choose between steady or pulsing tone
Clear acoustic signalling, approx. 90 dB(A) in 1 m
High degree of protection IP66, UL 4/4X/13

Technical data

Leakage current	0,003 A
Volume	90 dB
Duty cycle	100 %
Operating temperature	-30 °C / +60 °C
Degree of protection	IP66 & UL Type 4/4x/13

Necessary Cookies

These cookies are necessary for the technical functions of our website and cannot be switched off.

Analytics Cookies

These cookies help us to understand how visiters engage with the website. This allows us to continously improve our website and optimize the user experience. In this process, data is also transmitted to third countries. Under certain circumstances, your rights are neither sufficiently protected by laws in the third countries nor by agreements with the third-party providers used, so we require your consent for this in any case.

Marketing Cookies

We use cookies to make our ads more engaging and valuable to site visitors. This helps us to improve and optimize our advertising campaigns. In this process, data is also transmitted to third countries. Under certain circumstances, your rights are neither sufficiently protected by laws in the third countries nor by agreements with the third-party providers used, so we require your consent for this in any case.

You can change your settings and withdraw your consent at any time. The lawfulness of the processing carried out on the basis of the consent up to the revocation is not affected by this.

Nominal voltage	24 V AC/DC
Voltage range (V)	+/- 10 %
Max. Nominal current (A)	0,065
Weight	74 g
