PC7MC5IO

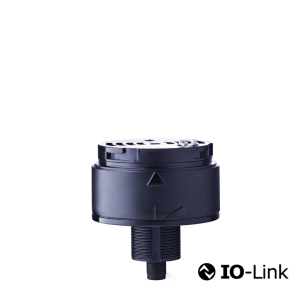

PC7MC5IO IO-Link Base with integrated 5-Pin M12 plug

Discover product benefits

Downloads

Request product

3D-Modell herunterladen

PC7MC5IO IO-Link Base with integrated 5-Pin M12 plug

Most userfriendly parametrization of IO-Link signal towers in the market
IO-Link functionality integrated in tower base (no additional module needed)
Functional upgrade of cost effective steady light modules to enable blink, flash and double flash mode by IO-Link base
Base with M30 mounting thread and integrated 5-pin M12 connector for error-free installation

Technical data

Operating temperature	-30 °C / +70 °C
Operating temperature	UL: -30°C / +45°C
Product standard	IEC61131-9
Degree of protection	IP66 & IP67
Impact resistance	IK08

Accessories

	Type	Type of accessory	Weight	Part no.
	WZC	Bracket	85 g	200550900
	WZCI	Metal bracket for vertical mounting, indoor	85 g	200550910
