RKV
RKV Cable gland

Order no.

850590920

Downloads

Contact sales

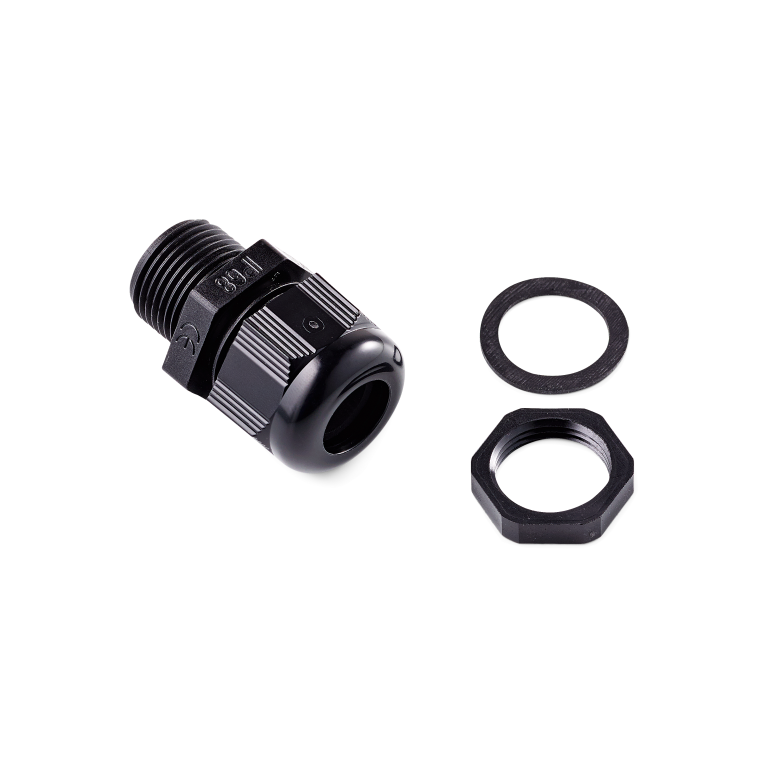

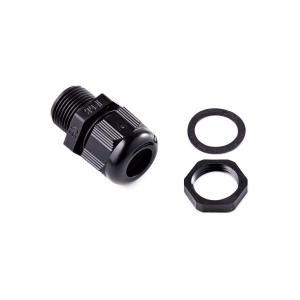

RKV Cable gland

  • Cable gland M16 for R series bases
  • Clamping range: 4-10mm
  • Operating temperature: -40°C to + 100°C
  • Material screw connection body / cap nut: polyamide 6,
    material seal: neoprene
  • Wrench size: 22mm
  • Thread length: 15mm



Suitable for

RBL
RCDM
RCMM
RDC
RDM
RDMHP
RMM
