CT5ZM Piezo buzzer module

Order no.

Contact sales
Download 3D model

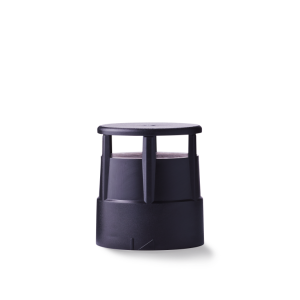

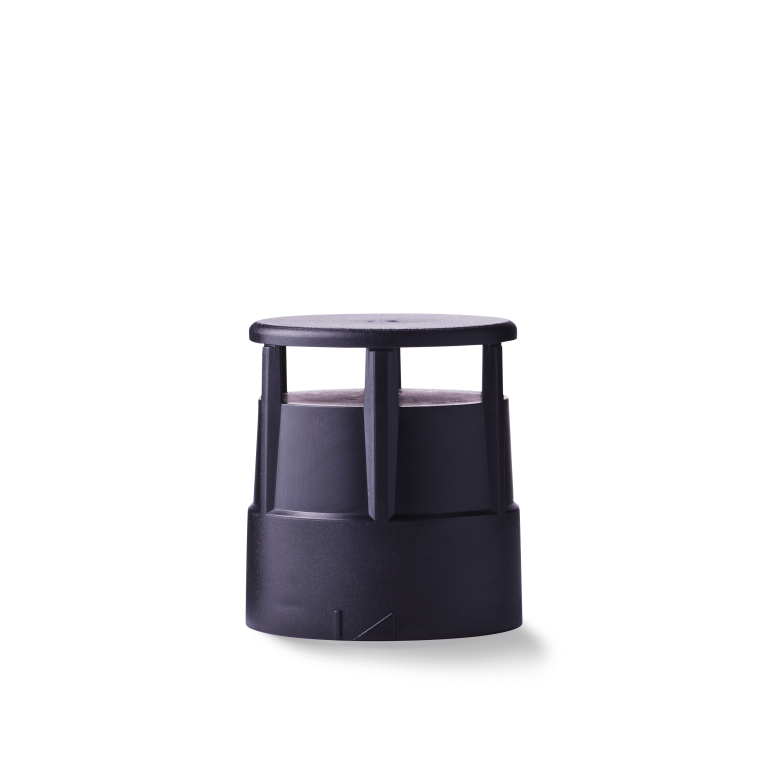

CT5ZM Piezo buzzer module

  • Piezo buzzer module for CT5 modular signal tower
  • For mounting at the top of a signal tower
  • one of eight tones can be selected with a dip switch
  • Max. 95 dB volume, can be controlled with potentiometer
  • High degree of protection IP65, UL type 4/4X
  • IO-Link compatible

Technical data

Leakage current0,003 A
Volume95 dB
Duty cycle100 %
Operating temperature-30 °C / +60 °C
Degree of protectionIP65 & UL Type 4/4x
Impact resistanceIK07
Weight27 g
