ESD Panel mount buzzer M28

Downloads

Request product

Download 3D model

ESD Panel mount buzzer M28

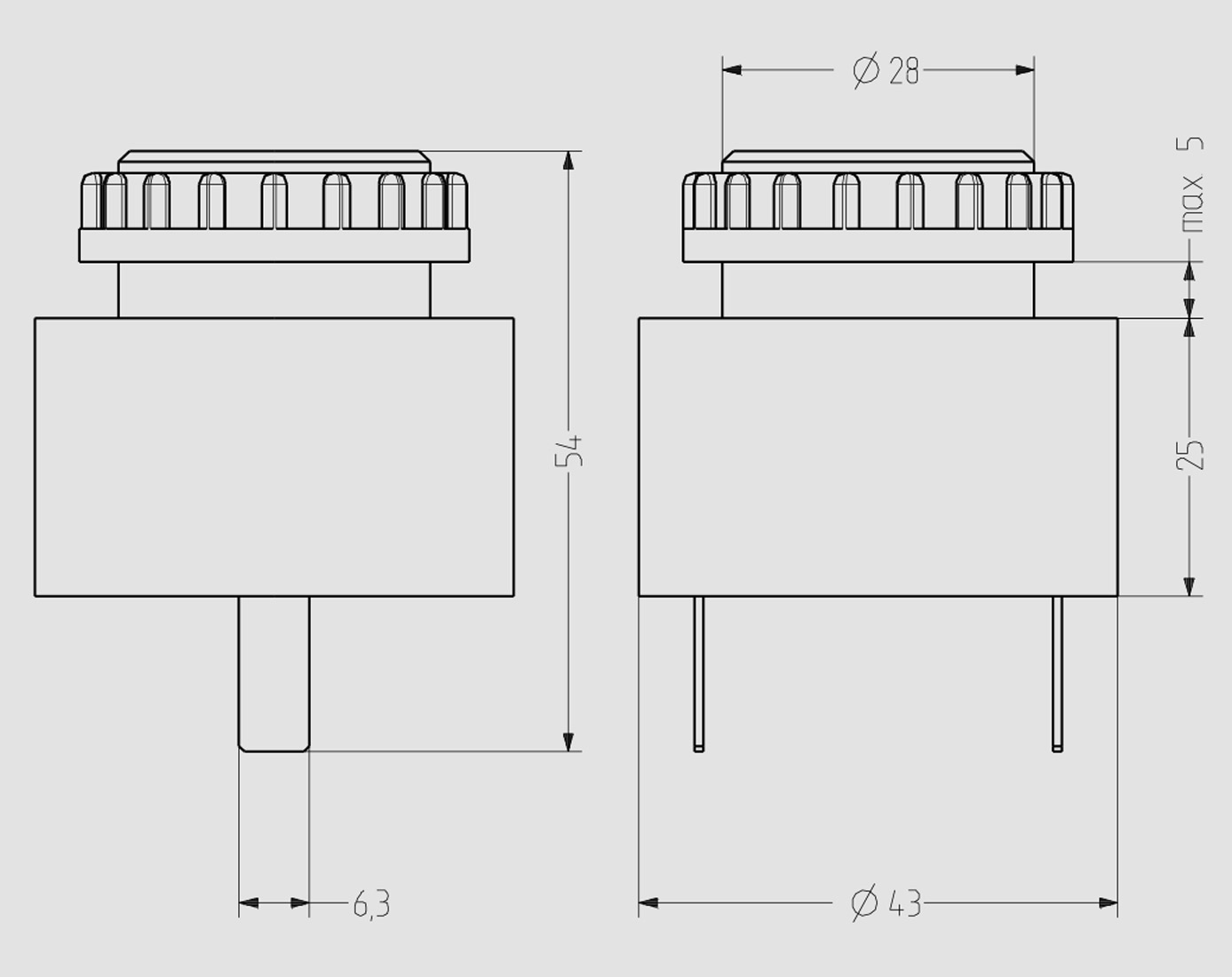

Ø 35 mm (mounting nut) panel-mount buzzer
Max. 90 dB (A) sound pressure
Wide voltage range
Panel size Ø 28 mm/M28

Steady tone
Connection via tabs
Sealed electronics, low current consumption
IP30 & IP68 for 24 V model when panel mounted

Especially suitable for

Technical data

Connection technology	Flat connector
Operating temperature	-20 °C / +60 °C
Panel size	28 mm (M28)
Duty cycle	100 %
Housing	ABS grey or black
Volume	90 dB
Type of mounting	any
Degree of protection	IP30 & IP68
Tone	Steady tone
Tone frequency	2.400 Hz
Weight	55 g
