ESZ Panel mount buzzer M28
Request product
Download 3D model

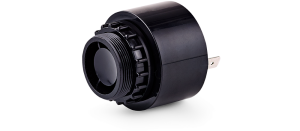

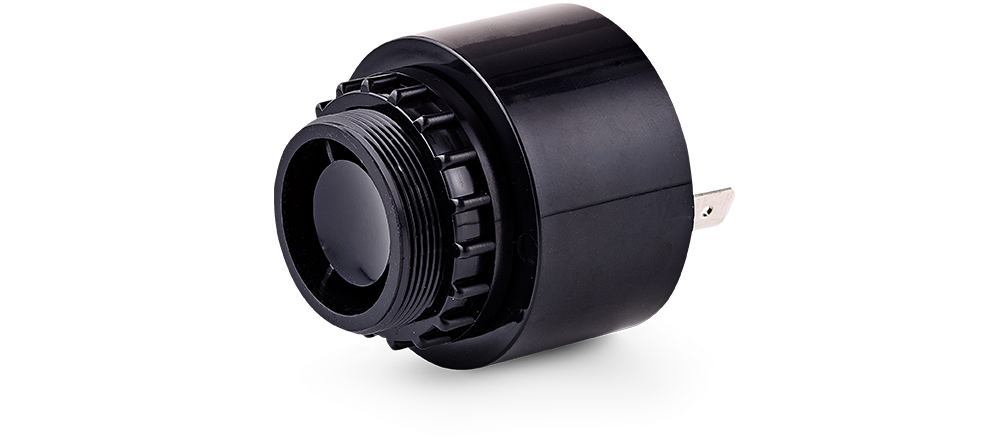

ESZ Panel mount buzzer M28

  • Ø 35 mm (mounting nut) panel-mount buzzer
  • Max. 90 dB (A) sound pressure
  • Wide voltage range

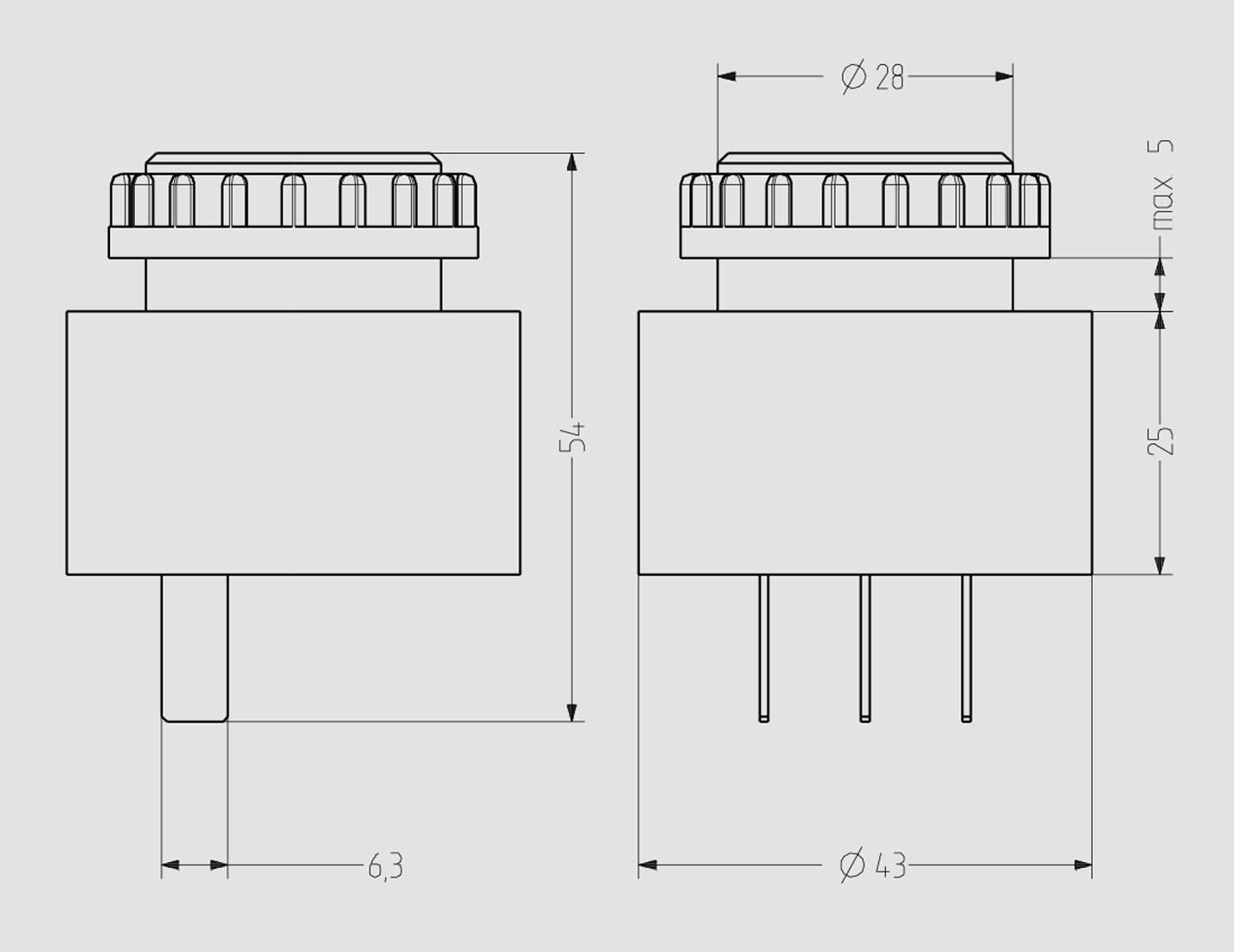

  • Panel size Ø 28 mm/M28
  • Steady and pulsing tone
  • Connection via tabs or terminal
  • For industrial and general applications
  • Sealed electronics, low current consumption

Technical data

HousingABS grey or black
Type of mountingany
Panel size28 mm (M28)
Connection technologyFlat connector or terminal
Tone2 Tones, 2 Tones can be switched externally, Steady tone or Pulsing tone
Volume90 dB
Tone frequency2.400 Hz
Duty cycle100 %
Operating temperature-20 °C / +60 °C
Degree of protectionIP30 & IP68 for 24 V model when panel mounted
Weight55 g
