SD5ST

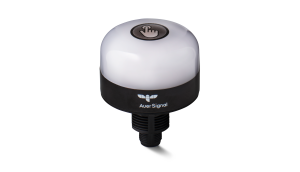

SD5ST Smart Dot 50 Standard Touch Button Multicolor
- ambient adaptive touch sensor with visual input feedback
- high brightness, color brilliance and energy efficiency
- excellent homogeneous and flexible multicolor-signaling (6 colors)
- 2 animations modes: Steady, High Intensity Beat
- Smart Diagnostics, Active Inrush Current Control, Active Thermal Control
- Nominal voltage 10-30 V DC
Technical data
| Touch input response time | 40 ms |
| Touch Output | momentary |
| Candela | Green (4,8 Cd), Yellow (4,2 Cd), Red (1,8 Cd), White (4,5 Cd), Cyan (4,4 Cd), Magenta (1,5 Cd) |
| Output current | 150 mA max. |
| Inrush current | max. 0,5 A |
| Output Response Time (Touch) | 110 ms |
| Input Response Time | 13 ms |
| Housing | Polycarbonate, UV stabilized white or black |
| Colours | green, yellow, red, magenta, white, cyan |
| Lens | Polycarbonate, UV stabilized, |
| Leakage current | 0,001 A |
| Light source | LEDs |
| Operating temperature | -40 °C / +70 °C |
| Degree of protection | IP66, IP67, IP69, IP69K, IP6K9K & UL Type 4/4x |
| Impact resistance | IK08 |
| Weight | 48 g |
Accessories
| Type | Type of accessory | Weight | Part no. | |
|---|---|---|---|---|
 | SA5B | Stainless steel bracket for products with M22 mounting thread | 100 g | SA50B90 |
 | SA5BF | Stainless steel bracket flat for products with M22 mounting thread | 85 g | SA50BF |
