SD5B3

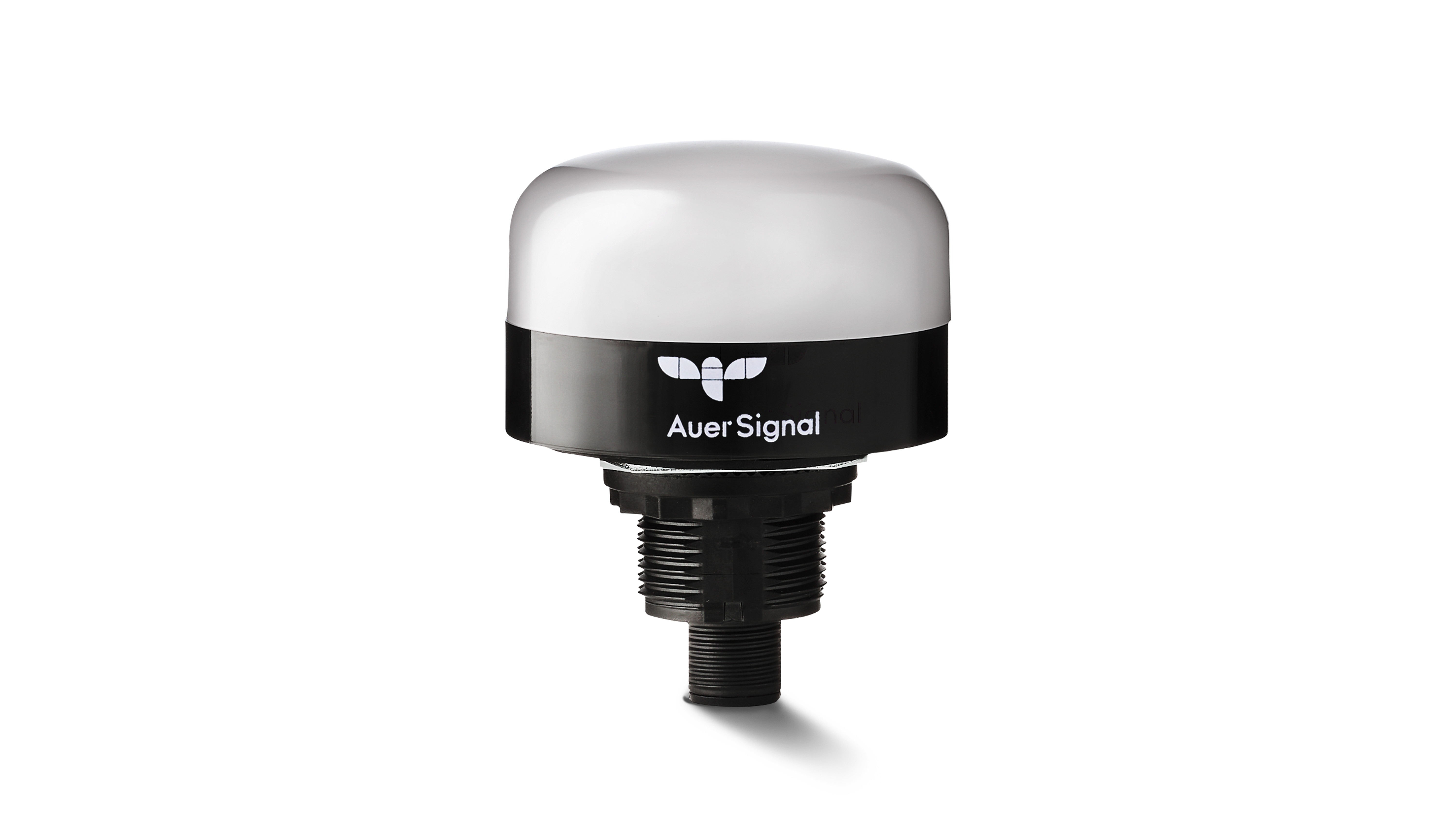

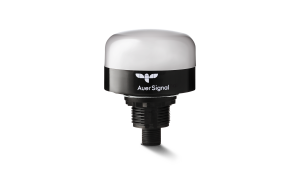

SD5B3 Smart Dot 50 Basic Beacon Tricolor
- Extreme brightness, vivid color output, and energy efficiency
- Excellent homogeneous and flexible tricolor-signaling
- 5 animation modes: Steady, Flash, Color-Alternation, High Intensity Beat, Steady ECO
- Active Thermal Control & Active Inrush Current Control
- Nominal voltage 18-30 V DC
Technical data
| Operating temperature | -40 °C / +70 °C |
| Housing | Ø 50 mm, Polycarbonate, UV stabilized white, black or Stainless steel |
| Lens | Polycarbonate, UV stabilized, smooth (milky-white) |
| Leakage current | 0,001 A |
| Light source | LEDs |
| Type of mounting | Ø22,5 mm (M22) |
| Impact resistance | IK08 |
| Degree of protection | IP66, IP67, IP69, IP69K, IP6K9K & UL Type 4/4x |
| Weight | 48 g (black/white), 98 g (stainless steel) |
Order data (optional)
| Type | Type of accessory | Tube length | Weight | Part no. | |
|---|---|---|---|---|---|
 | SA5MV | Wall mount | 165 g | SA50-MV100 | |
 | SA5T | Mounting tulip | 49 g | SA50-TLP | |
 | SA5QM | Quick Foot mount | 100 mm | 121 g | SA50-QM100 |
| SA5QM | Quick Foot mount | 250 mm | 166 g | SA50-QM250 |
| SA5QM | Quick Foot mount | 400 mm | 210 g | SA50-QM400 |
 | SA5MR | Retrofit Foot mount | 100 mm | 104 g | SA50-MR100 |
Accessories
| Type | Type of accessory | Weight | Cable length | Part no. | |
|---|---|---|---|---|---|
 | CM12 | Sensorcable, 5 Pin, free cable end | 0,5 m | CM12-5-A-05 | |
| CM12 | Sensorcable, 5 Pin, free cable end | 1,0 m | CM12-5-A-1 | |
| CM12 | Sensorcable, 5 Pin, free cable end | 2,0 m | CM12-5-A-2 | |
 | SA5B | Stainless steel bracket for products with M22 mounting thread | 100 g | SA50B90 | |
 | SA5BF | Stainless steel bracket flat for products with M22 mounting thread | 85 g | SA50BF |
