MT60
MT60 Monolithic signal tower
Available from March 2024
Contact sales
Download 3D model

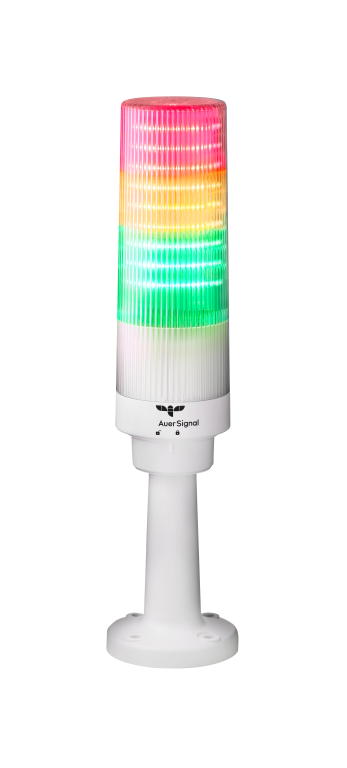

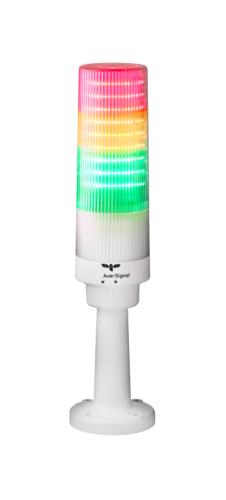

MT60 Monolithic signal tower

  • pre-assembled entry level signal tower for ready-to-go installation
  • excellent circular light distribution to prevent blind spots
  • transparent lens to prevent wrong signaling indication caused by external light interferences
  • easy cleaning of the monolithic single lens also powerful water jets possible (IP66)
  • fixed, separated color positions (green/yellow/red)
  • steady light and escalation options, including flashing red and/or sound



Technical data

HousingPolycarbonate white
LensPolycarbonate, clear
Volume75 dB
Operating temperature-25 °C / +50 °C
Degree of protectionIP66
Impact resistanceIK07

Pre-assembled signal towers

Number of colours

3

Colours

red/yellow/green

Function

Housing colour

white

Nominal voltage

Type of mounting

Sounder

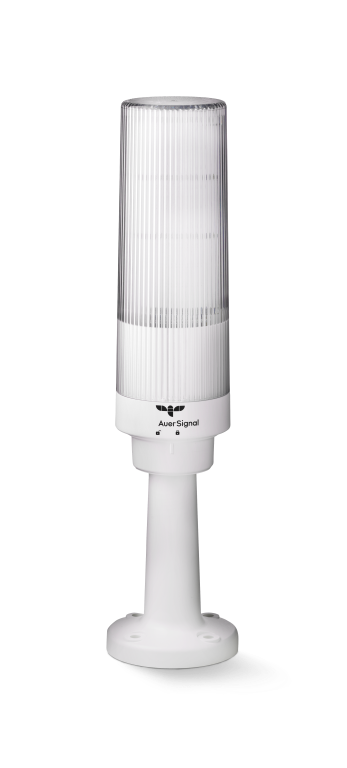

MT60 Monolithic signal tower 24 V DC red/yellow/green, white
Order no.: MT60-F100-24VDC
Number of colours: 3
Colours: red/yellow/green
Function: LED steady & flashing (red)
Housing colour: white
Nominal voltage: 24 V DC
Type of mounting: tube base (100 mm)
Sounder: not integrated

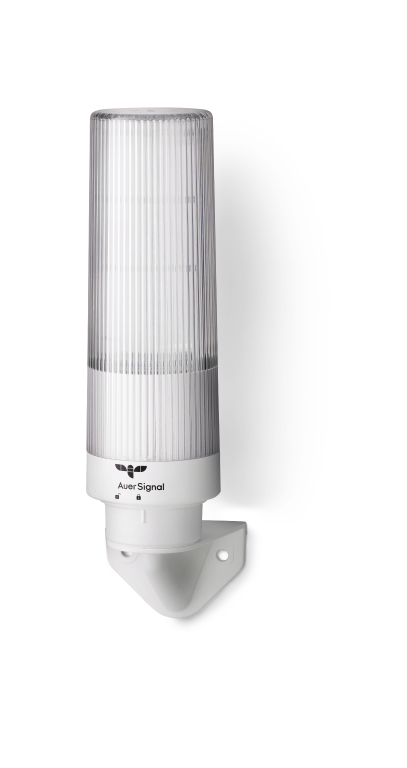

MT60 Monolithic signal tower 24 V DC red/yellow/green, white
Order no.: MT60-W-24VDC
Number of colours: 3
Colours: red/yellow/green
Function: LED steady & flashing (red)
Housing colour: white
Nominal voltage: 24 V DC
Type of mounting: vertical (with bracket)
Sounder: not integrated

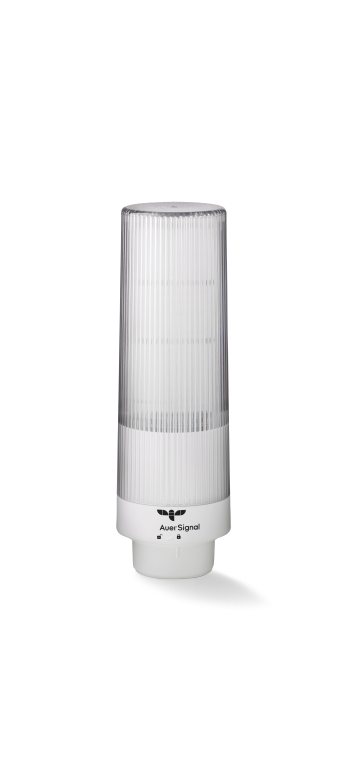

MT60 Monolithic signal tower 24 V DC red/yellow/green, white
Order no.: MT60-S-24VDC
Number of colours: 3
Colours: red/yellow/green
Function: LED steady & flashing (red)
Housing colour: white
Nominal voltage: 24 V DC
Type of mounting: horizontal or external tube mounting
Sounder: not integrated

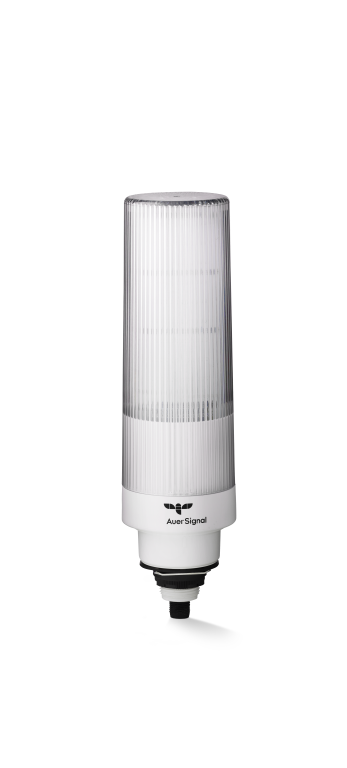

MT60 Monolithic signal tower 24 V DC red/yellow/green, white
Order no.: MT60-M12-24VDC
Number of colours: 3
Colours: red/yellow/green
Function: LED steady & flashing (red)
Housing colour: white
Nominal voltage: 24 V DC
Type of mounting: M22 with 5-pin M12 connector
Sounder: not integrated
MT60 Monolithic signal tower 24 V DC red/yellow/green, white
Order no.: MT60-F100-S-24VDC
Number of colours: 3
Colours: red/yellow/green
Function: LED steady & flashing (red)
Housing colour: white
Nominal voltage: 24 V DC
Type of mounting: tube base (100 mm)
Sounder: integrated
MT60 Monolithic signal tower 24 V DC red/yellow/green, white
Order no.: MT60-W-S-24VDC
Number of colours: 3
Colours: red/yellow/green
Function: LED steady & flashing (red)
Housing colour: white
Nominal voltage: 24 V DC
Type of mounting: vertical (with bracket)
Sounder: integrated
MT60 Monolithic signal tower 24 V DC red/yellow/green, white
Order no.: MT60-S-S-24VDC
Number of colours: 3
Colours: red/yellow/green
Function: LED steady & flashing (red)
Housing colour: white
Nominal voltage: 24 V DC
Type of mounting: horizontal or external tube mounting
Sounder: integrated
MT60 Monolithic signal tower 24 V DC red/yellow/green, white
Order no.: MT60-M12-S-24VDC
Number of colours: 3
Colours: red/yellow/green
Function: LED steady
Housing colour: white
Nominal voltage: 24 V DC
Type of mounting: M22 with 5-pin M12 connector
Sounder: integrated
MT60 Monolithic signal tower 110 V AC red/yellow/green, white
Order no.: MT60-F100-110VAC
Number of colours: 3
Colours: red/yellow/green
Function: LED steady & flashing (red)
Housing colour: white
Nominal voltage: 110 V AC
Type of mounting: tube base (100 mm)
Sounder: not integrated
MT60 Monolithic signal tower 110 V AC red/yellow/green, white
Order no.: MT60-W-110VAC
Number of colours: 3
Colours: red/yellow/green
Function: LED steady & flashing (red)
Housing colour: white
Nominal voltage: 110 V AC
Type of mounting: vertical (with bracket)
Sounder: not integrated
MT60 Monolithic signal tower 110 V AC red/yellow/green, white
Order no.: MT60-S-110VAC
Number of colours: 3
Colours: red/yellow/green
Function: LED steady & flashing (red)
Housing colour: white
Nominal voltage: 110 V AC
Type of mounting: horizontal or external tube mounting
Sounder: not integrated
MT60 Monolithic signal tower 110 V AC red/yellow/green, white
Order no.: MT60-F100-S-110VAC
Number of colours: 3
Colours: red/yellow/green
Function: LED steady & flashing (red)
Housing colour: white
Nominal voltage: 110 V AC
Type of mounting: tube base (100 mm)
Sounder: integrated
MT60 Monolithic signal tower 110 V AC red/yellow/green, white
Order no.: MT60-W-S-110VAC
Number of colours: 3
Colours: red/yellow/green
Function: LED steady & flashing (red)
Housing colour: white
Nominal voltage: 110 V AC
Type of mounting: vertical (with bracket)
Sounder: integrated
MT60 Monolithic signal tower 110 V AC red/yellow/green, white
Order no.: MT60-S-S-110VAC
Number of colours: 3
Colours: red/yellow/green
Function: LED steady & flashing (red)
Housing colour: white
Nominal voltage: 110 V AC
Type of mounting: horizontal or external tube mounting
Sounder: integrated
MT60 Monolithic signal tower 230 V AC red/yellow/green, white
Order no.: MT60-F100-230VAC
Number of colours: 3
Colours: red/yellow/green
Function: LED steady & flashing (red)
Housing colour: white
Nominal voltage: 230 V AC
Type of mounting: tube base (100 mm)
Sounder: not integrated
MT60 Monolithic signal tower 230 V AC red/yellow/green, white
Order no.: MT60-S-230VAC
Number of colours: 3
Colours: red/yellow/green
Function: LED steady & flashing (red)
Housing colour: white
Nominal voltage: 230 V AC
Type of mounting: horizontal or external tube mounting
Sounder: not integrated
MT60 Monolithic signal tower 230 V AC red/yellow/green, white
Order no.: MT60-F100-S-230VAC
Number of colours: 3
Colours: red/yellow/green
Function: LED steady & flashing (red)
Housing colour: white
Nominal voltage: 230 V AC
Type of mounting: tube base (100 mm)
Sounder: integrated
MT60 Monolithic signal tower 230 V AC red/yellow/green, white
Order no.: MT60-W-S-230VAC
Number of colours: 3
Colours: red/yellow/green
Function: LED steady & flashing (red)
Housing colour: white
Nominal voltage: 230 V AC
Type of mounting: vertical (with bracket)
Sounder: integrated
MT60 Monolithic signal tower 230 V AC red/yellow/green, white
Order no.: MT60-S-S-230VAC
Number of colours: 3
Colours: red/yellow/green
Function: LED steady & flashing (red)
Housing colour: white
Nominal voltage: 230 V AC
Type of mounting: horizontal or external tube mounting
Sounder: integrated
MT60 Monolithic signal tower 230 V AC red/yellow/green, white
Order no.: MT60-W-230VAC
Number of colours: 3
Colours: red/yellow/green
Function: LED steady & flashing (red)
Housing colour: white
Nominal voltage: 230 V AC
Type of mounting: vertical (with bracket)
Sounder: not integrated

Accessories

TypeType of accessoryWeightOrder no.
Metal bracket for products with M22 mounting thread - WM22WM22Metal bracket for products with M22 mounting thread45 g812100900Save to watchlist
Bracket  - WZCWZCBracket 85 g200550900Save to watchlist
Screw set  for external tube mounting - CT5SKCT5SKScrew set for external tube mounting4 g915710910Save to watchlist
