ASS-P+QDS Multi-tone alarm sounder and LED steady/flashing beacon

Visual equipment

Contact sales
Download 3D model

ASS-P+QDS Multi-tone alarm sounder and LED steady/flashing beacon

  • Combination of 94 mm cubic-design multi-tone alarm sounder and LED steady/flashing beacon
  • Beacon with good frontal/lateral signalling effect
  • High degree of protection IP 66
  • UV-stabilised material
  • Piezo technology, 8 tones, max. 103 dB (A) sound pressure
  • Sound pressure infinitely adjustable by potentiometer
  • Types of light can be switched externally
  • For industrial and general applications

Technical data – visual equipment

Housing94 mm (square), Polycarbonate red (RAL 3000)
LensPolycarbonate, ribbed inside amber, red, clear, blue, green or yellow
Type of mountinghorizontal, vertical or any
Cable entryBack: Grommet 5–10 mm, optional side cable entry with cable gland (on both sides) (accessory type AKV)
Connection technologyScrew/plug-in terminal 2,5 mm²
Leakage current0,003 A (PLC-suitable)
Beacon typeLED steady beacon or LED flashing beacon
Light source16 LEDs
Luminous intensity30 Cd
Strobe/flash frequency1 Hz
Duty cycle100 %
Service lifeLight source: >50.000 h
Operating temperature-30 °C / +60 °C
Degree of protectionIP66 & UL Type 4/4x/13
Impact resistanceIK09
Weight230 g

Technical data – audible equipment

HousingPolycarbonate red (RAL 3000)
Type of mountinghorizontal, vertical or any, Sound outlet opening at bottom or horizontal
Cable entryBack: Grommet 5–10 mm Side: AKV cable gland M20 x 1.5 7–14 mm can be mounted
Connection technologyScrew/plug-in terminal bis 2,5 mm²
Leakage current0,003 A

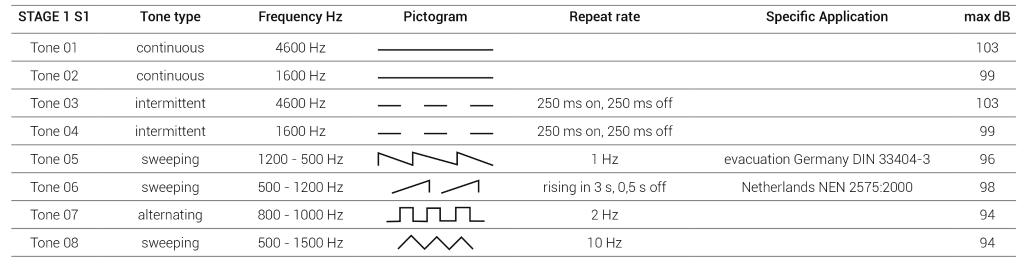

Tone8 Tones, 1 Tones can be switched externally, see tone table
Volume103 dB (can be adjusted with potentiometer)
Tone frequency500-4.600 Hz
Duty cycle100 %
Operating temperature-30 °C / +60 °C
Degree of protectionIP66 & UL Type 4/4x/13
Impact resistanceIK09
Weight300 g

Visual equipment

TypeLens colourNominal voltageVoltage range (V)Nominal current (A)Order no.
QDSamber24 V AC/DC+/- 10 %0,100 874161405Save to watchlist
QDSamber48 V AC/DC+/- 10 %0,075 874161408Save to watchlist
QDSamber110-120 V AC+/- 10 %0,085 874161310Save to watchlist
QDSamber230-240 V AC+/- 10 %0,075 874161313Save to watchlist
QDSblue24 V AC/DC+/- 10 %0,100 874165405Save to watchlist
QDSblue48 V AC/DC+/- 10 %0,075 874165408Save to watchlist
QDSblue110-120 V AC+/- 10 %0,085 874165310Save to watchlist
QDSblue230-240 V AC+/- 10 %0,075 874165313Save to watchlist
QDSclear24 V AC/DC+/- 10 %0,100 874164405Save to watchlist
QDSclear48 V AC/DC+/- 10 %0,075 874164408Save to watchlist
QDSclear110-120 V AC+/- 10 %0,085 874164310Save to watchlist
QDSclear230-240 V AC+/- 10 %0,075 874164313Save to watchlist
QDSgreen24 V AC/DC+/- 10 %0,100 874166405Save to watchlist
QDSgreen48 V AC/DC+/- 10 %0,075 874166408Save to watchlist
QDSgreen110-120 V AC+/- 10 %0,085 874166310Save to watchlist
QDSgreen230-240 V AC+/- 10 %0,075 874166313Save to watchlist
QDSred24 V AC/DC+/- 10 %0,100 874162405Save to watchlist
QDSred48 V AC/DC+/- 10 %0,075 874162408Save to watchlist
QDSred110-120 V AC+/- 10 %0,085 874162310Save to watchlist
QDSred230-240 V AC+/- 10 %0,075 874162313Save to watchlist
QDSyellow24 V AC/DC+/- 10 %0,100 874167405Save to watchlist
QDSyellow48 V AC/DC+/- 10 %0,075 874167408Save to watchlist
QDSyellow110-120 V AC+/- 10 %0,085 874167310Save to watchlist
QDSyellow230-240 V AC+/- 10 %0,075 874167313Save to watchlist

Audible equipment

TypeNominal voltageVoltage range (V)Nominal current (A)Mains frequencyOrder no.
ASS-P24 V AC/DC+/- 10 %0,100 50-60 Hz874060405Save to watchlist
ASS-P48 V AC/DC+/- 10 %0,075 50-60 Hz874060408Save to watchlist
ASS-P110-120 V AC+/- 10 %0,040 50-60 Hz874060310Save to watchlist
ASS-P230-240 V AC+/- 10 %0,410 50-60 Hz874060313Save to watchlist

Accessories

TypeType of accessoryWeightOrder no.
 Screw set for use with A/Q series size 1 and 2 - ASKASK Screw set for use with A/Q series size 1 and 22 g874045900Save to watchlist
Mounting set for combining several pieces of signalling equipment of the same size - AMKAMKMounting set for combining several pieces of signalling equipment of the same size10 g874010900Save to watchlist
Mounting set for metal bracket for mounting in any direction (e.g. on mounting platforms) - AB1AB1Mounting set for metal bracket for mounting in any direction (e.g. on mounting platforms)120 g874031900Save to watchlist
Flat seal for correct IP66 installation on smooth surfaces - AG1AG1Flat seal for correct IP66 installation on smooth surfaces19 g874021900Save to watchlist
Cable gland M20x1,5 - AKVAKVCable gland M20x1,514 g698800026Save to watchlist
