ASL Multi-tone alarm sounder

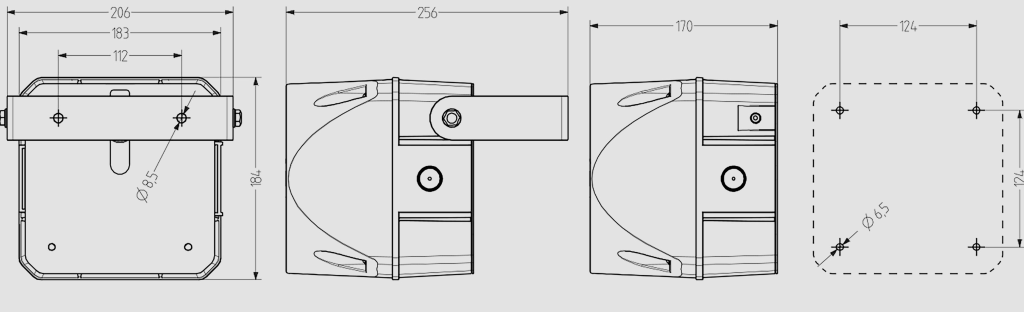

  • 184 mm cubic-design multi-tone alarm sounder
  • Max. 120 dB (A) sound pressure
  • High degree of protection IP 66
  • Optional mounting type using metal bracket
  • 63 tones can be selected, 3 tones can be switched externally
  • Sound pressure adjustable by potentiometer
  • For industrial and general applications
  • Combinations of multi-tone alarm sounders and beacons available

Technical data

HousingPolycarbonate, UV stabilized
Type of mountinghorizontal, vertical or any, Sound outlet opening at bottom or horizontal
Cable entryBack: Grommet 5–10 mm
Side: AKV cable gland M20 x 1.5 7–14 mm can be mounted
Connection technologyScrew/plug-in terminal up to 2,5 mm²
Leakage current0,003 A
Tone63 Tones, 3 Tones can be switched externally, see tone table
Volume120 dB (can be adjusted with potentiometer)
Tone frequency150-3.100 Hz
Duty cycle100 %
Operating temperature-30 °C / +60 °C
Degree of protectionIP66
Impact resistanceIK09
Weight2,2 kg

Accessories

TypeType of accessoryWeightPart no.
Adjustment pin for built-in buzzer  - PINPINAdjustment pin for built-in buzzer 1 g813909405Save to watchlist
Mounting set for combining several pieces of signalling equipment of the same size - AMKAMKMounting set for combining several pieces of signalling equipment of the same size10 g874010900Save to watchlist
Mounting set for metal bracket for mounting in any direction (e.g. on mounting platforms) - AB3AB3Mounting set for metal bracket for mounting in any direction (e.g. on mounting platforms)410 g874033900Save to watchlist
Flat seal for correct IP66 installation on smooth surfaces - AG3AG3Flat seal for correct IP66 installation on smooth surfaces67 g874023900Save to watchlist
Cable gland M20x1,5 - AKVAKVCable gland M20x1,514 g698800026Save to watchlist
