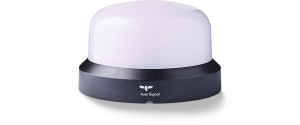

RCMM Compact LED multi colour beacon
Contact sales
Download 3D model

RCMM Compact LED multi colour beacon

  • milky lens provides nice, homogenous light
  • all 7 colours externally controllable (red, yellow, green, blue, clear, magenta, turquoise)
  • LED steady light
  • high protection class IP66 & impact resistance IK08
  • separate base (RBL, RBH, RBNPT, RBA) necessary



Technical data

HousingØ 110 mm, Polycarbonate
LensPolycarbonate, smooth (milky-white) clear
Type of mountinghorizontal, vertical, Tube mounting, Wall mounting or any
Connection technologyScrew terminal
Leakage current0,003 A
Beacon typeLED multi colour steady beacon
Light source10 LEDs
Duty cycle100 %
Operating temperature-30 °C / +60 °C
Degree of protectionIP66 & UL Type 4/4x/13
Impact resistanceIK08

Order data – base

TypeType of accessoryType of mountingWeightOrder no.
Base of R-Series beacons - RBLRBLBase of R-Series beaconshorizontal or vertical84 g850500900Save to watchlist
Base of R-Series beacons - RBHRBHBase of R-Series beaconshorizontal, Tube Ø 25 mm or vertical132 g850510900Save to watchlist
Base of R-series beacons - RBNPTRBNPTBase of R-series beaconshorizontal or for NPT 1/2" tube mounting132 g850515900Save to watchlist

Audible base

TypeNominal voltageType of mountingMax. sound pressure (dB)Order no.
24-48 V AC/DC - RBARBA24-48 V AC/DChorizontal or Metal bracket95 dB850535408Save to watchlist
110-240 V AC - RBARBA110-240 V AChorizontal or Metal bracket95 dB850535313Save to watchlist

Accessories

TypeType of accessoryWeightOrder no.
Bracket for wall mounting of R-series beacons - RWDRWDBracket for wall mounting of R-series beacons116 g850520900Save to watchlist
Bracket for wall mounting of R-series beacons - RWURWUBracket for wall mounting of R-series beacons202 g850521900Save to watchlist
Flat seal for R-series bases for sealing onto smooth housings - RG1RG1Flat seal for R-series bases for sealing onto smooth housings9 g850590900Save to watchlist
Flat seal for mounting the RWD designer bracket on walls - RG2RG2Flat seal for mounting the RWD designer bracket on walls5 g850590910Save to watchlist
Cable gland M16 for R-series bases - RKVRKVCable gland M16 for R-series bases9 g850590920Save to watchlist
Cable gland M20x1,5 - AKVAKVCable gland M20x1,514 g698800026Save to watchlist
