IML M22 panel mount LED multi colour beacon

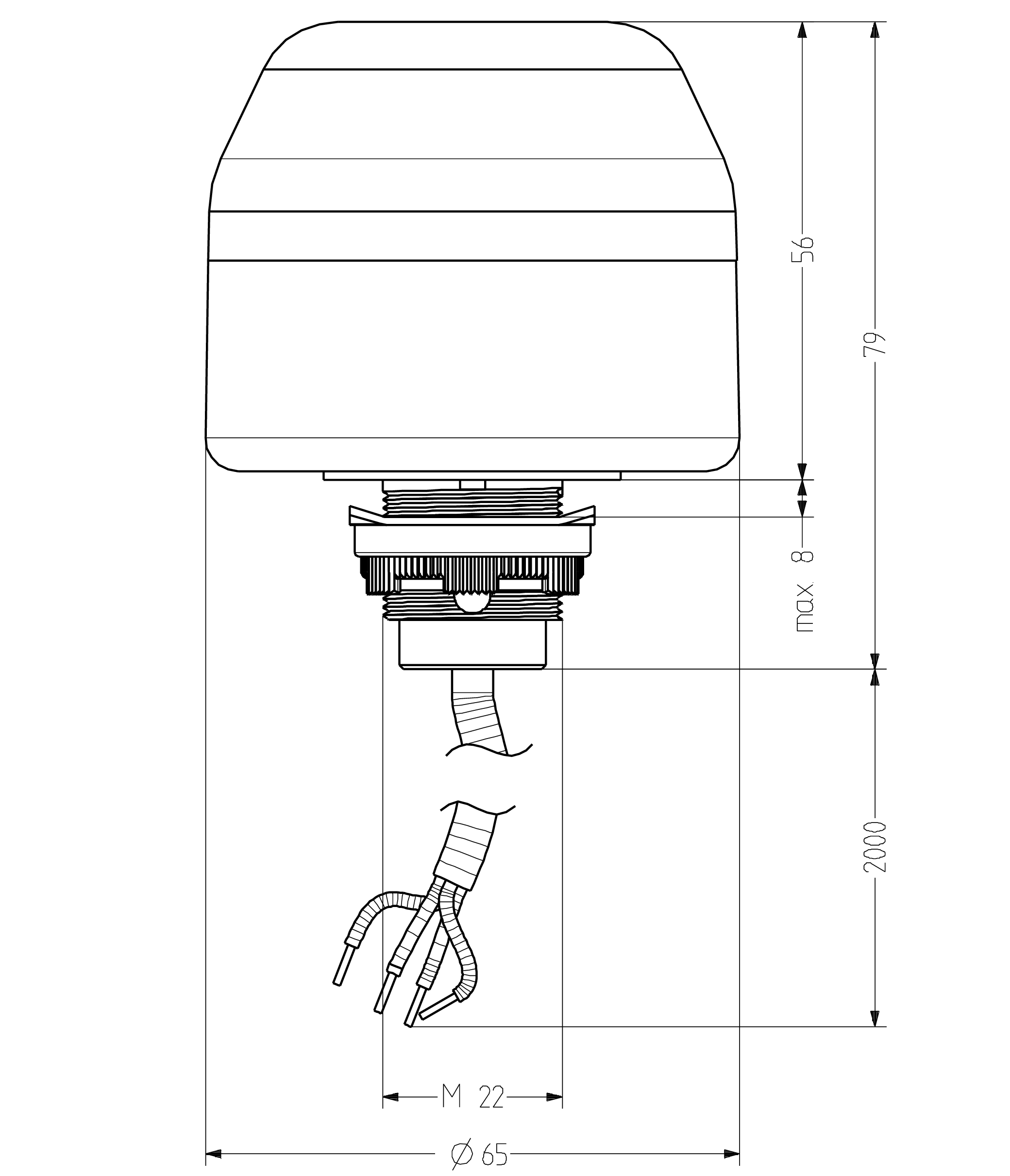

  • Ø 65 mm panel-mount LED multi-colour steady beacon
  • RED, YELLOW or GREEN, can be switched externally
  • High degree of protection IP 67
  • Prewired with 1 m UL cable
  • Modern LED technology and electronics
  • Good signalling effect
  • For industrial and general applications
  • Panel size Ø 22.5 mm/M22
  • Adapter available for M30.5 mm panel size

Technical data

HousingØ 65 mm, Polycarbonate black (RAL 9005) or grey (RAL 7035)
LensPolycarbonate, ribbed inside clear
Type of mountingany
Panel size22x1,25 mm (M22) and 30.5 mm (with adapter), mounting depth 23 mm
Cable entrypre-wired (1 m cable)
Leakage current0,003 A
Beacon typeLED steady beacon – 3 colour beacon
Light source12 LEDs
Number of colours3
Duty cycle100% (one colour)
Service lifeLight source: 100.000 h
Operating temperature-25 °C / +50 °C
Degree of protectionIP67 & UL Type 4/4x/13
Impact resistanceIK08
Weight117 g


TypeType of accessoryWeightOrder no.
Adapter for M30.5 for 30.5 mm holes - ADM30ADM30Adapter for M30.5 for 30.5 mm holes8 g812500900Save to watchlist
